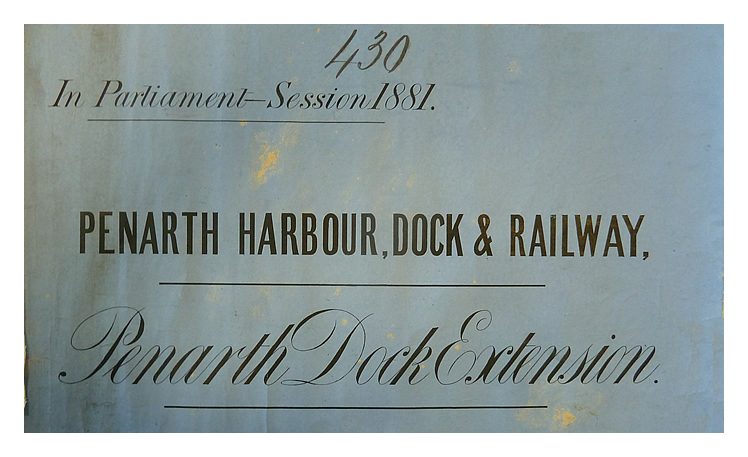

1880-81 - Penarth Dock Extension - Reference Book - The cover of the reference book which accompanied the sections and plans of the proposed dock extension of 270 yards in length. - [599] [archive ref : Q/P/D430] [20170910]

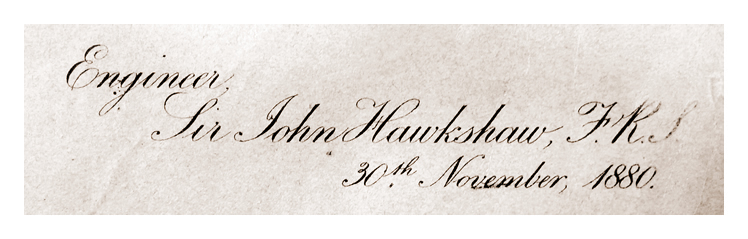

1880-81 - Penarth Dock Extension - Plan and Sections - The engineer is now Sir John Hawkshaw, F.R.S. (Fellow of the Royal Society) the originator of the dock back in 1865 and now nearly seventy years of age. These plans were prepared and dated the 30th November, 1880 and intended to be presented to Parliament during the 1881 Session. - [599] [archive ref : Q/P/D430] [20170910]

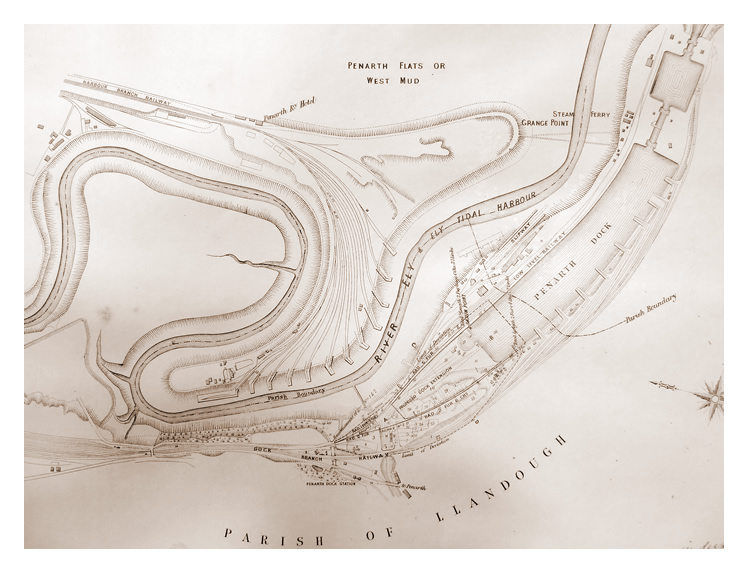

1880-81 - Penarth Dock Extension - Plan and Sections - A section of the main plan of the proposed extension to the Penarth Dock. - [599] [archive ref : Q/P/D430] [20170910]

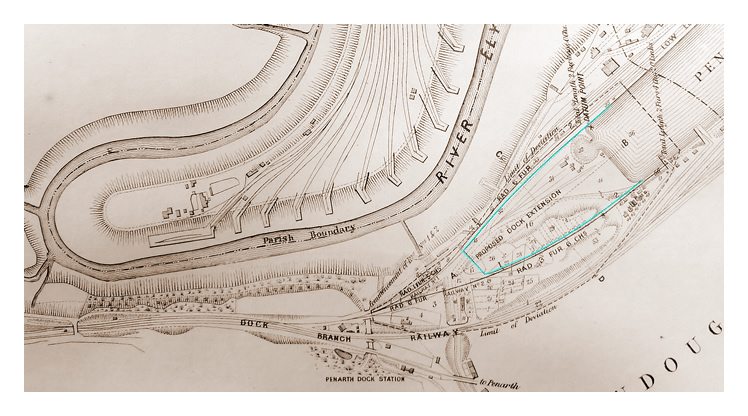

1880-81 - Penarth Dock Extension - Plan and Sections - A close up of the dock extension proposed as outlined in pale blue. A new access road and railways were also detailed. - [599] [archive ref : Q/P/D430] [20170910]
