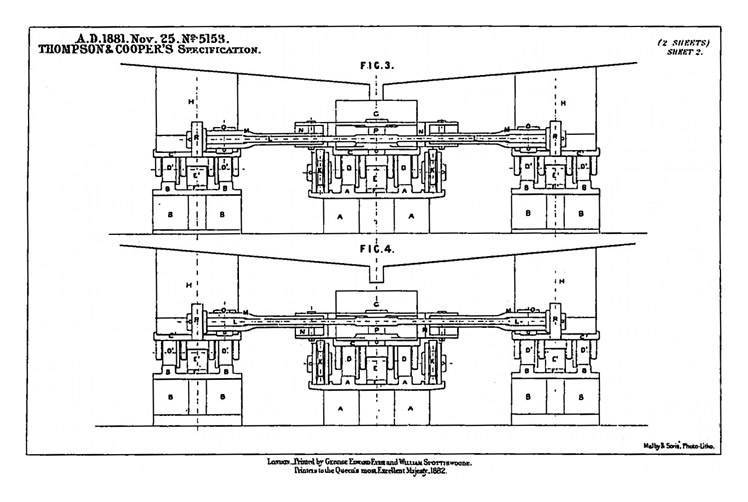

◊ Description of Drawings : Sheet 2 : Figures 3 and 4 : A.D. 1881. Nov. 25. No. 5153.  Thompson & Cooper's Specification.

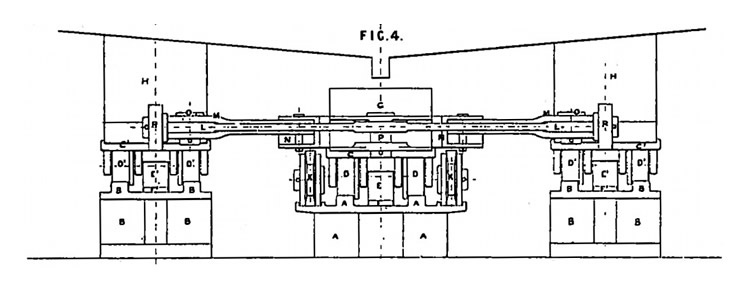

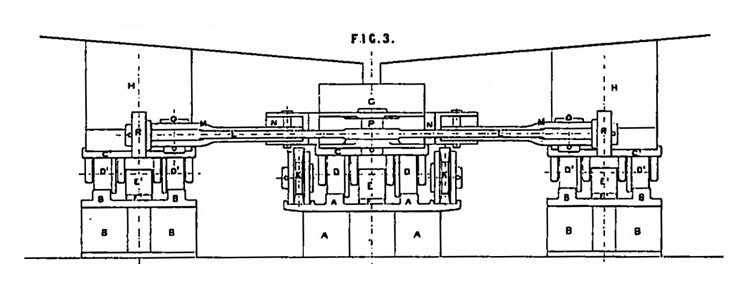

On Sheet 2, Figure 3 is a transverse section through the line a, b, of slipway on Figure 1, with a ship resting upon the keel blocks of the main cradle just taking the " bilge " blocks of auxiliary cradle, and Figure 4 is a transverse section through the line c, d, of slipway on Figure 1, with a ship lifted off the keel blocks of the main cradle, and resting upon the " bilge " blocks of the auxiliary cradle.
