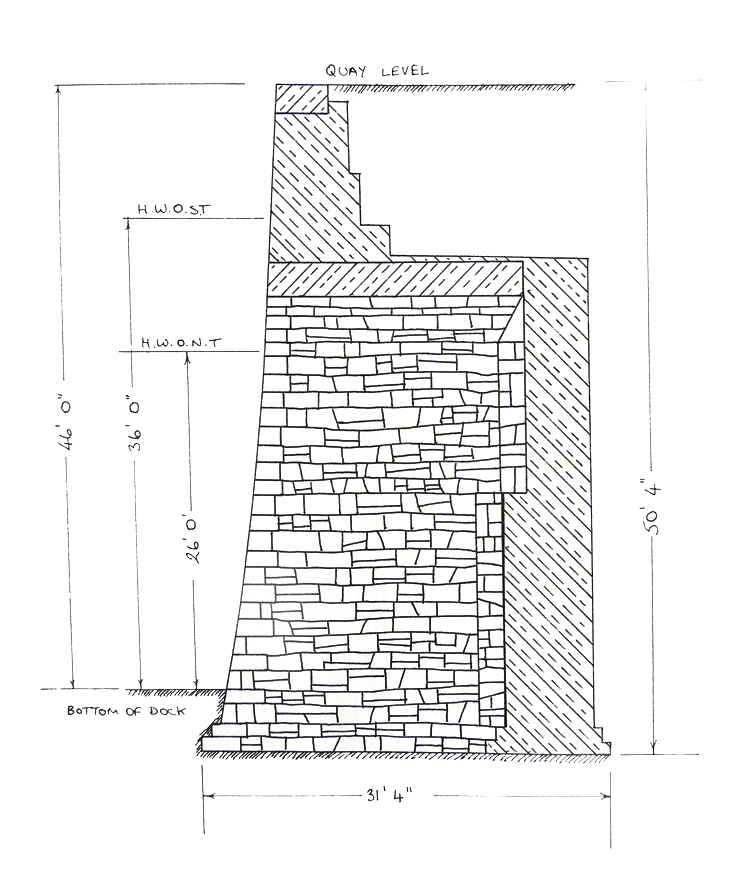

Figure 10 - Section through arched quay wall. [1292]

The following text is taken from Appendix A - Details of Illustrations:

This figure originates from the same source as figure 9 and so the details will not be repeated. However, for clarification purposes it should be noted that the figure represents a cross-section through the centre of the arch.
