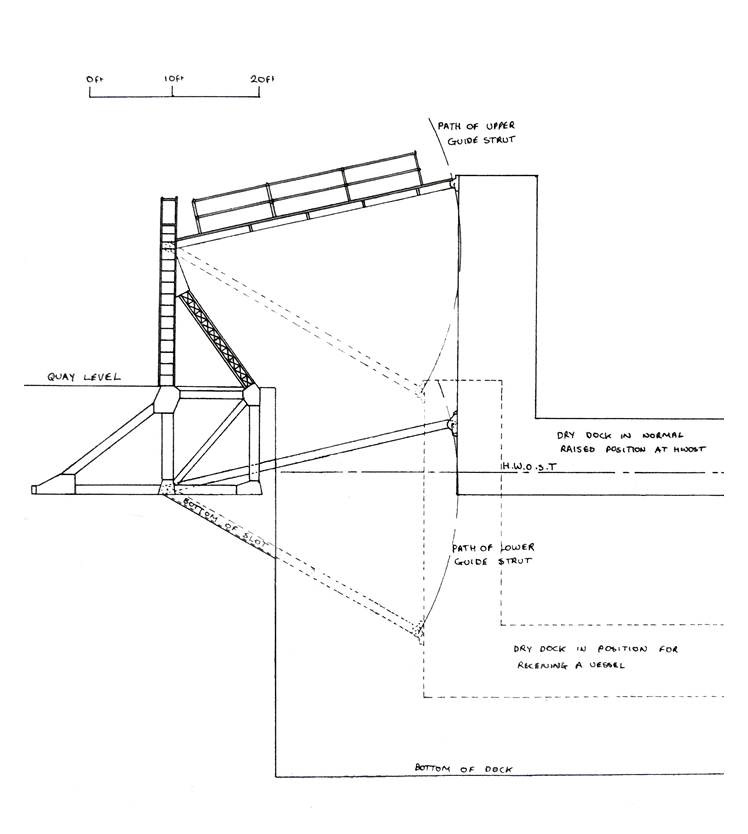

Figure 11b - Cross-section through one of the slots containing the shore connections for the floating dry-dock. [1292]

The following text is taken from Appendix A - Details of Illustrations:

Figures 11a and 11b are based upon information from an article and drawings published in 'The Engineer' and dated September 24th 1909.

Figure 11b shows the cross-section through one of the slots has been drawn in bold lines for clarity and again the finer detail of the dry-dock have not been included.
