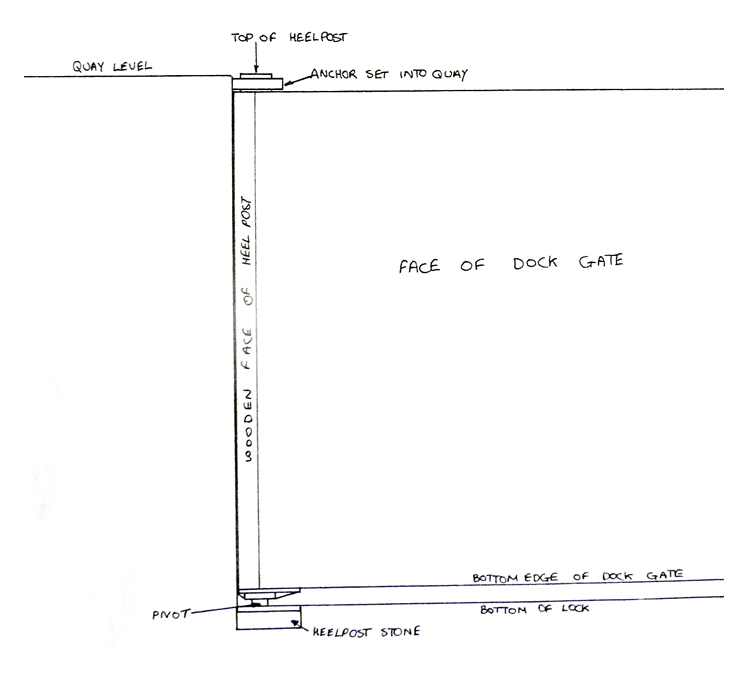

Figure 13 - Method of hinging dock gates using a pivot and anchor. [1292]

The following text is taken from Appendix A - Details of Illustrations:

Again this is not intended to represent the gates at Penarth Dock but merely to illustrate the attachment of the gates to the quay wall.
